Cap

specializes in the manufacture of flanges, butt weld pipe fittings in standard as well as special parts and forgings according to customer drawings.

  • Commodity name： Cap

Category:

Pipe Fitting

Email:

info@hbohgd.com

Get Quote
Also Like
  • Description
  • 参数

  • Technical Drawings

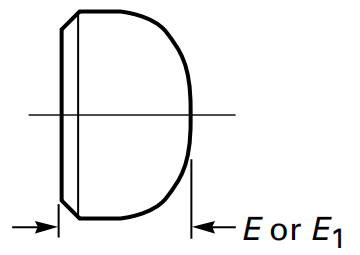

    Standard drawing of Caps.

    The cap is used to seal an open end of the pipe. In piping engineering, the cap made in accordance with ASME B16.9 will be welded to the end and need not be included in the length dimension of the run of pipe.

    Dimensions

    NPS O.D
    mm
    inch     		E [NOTE(1)]
    mm
    inch     		E
    mm
    inch     		E1 [NOTE(2)]
    mm
    inch
    1/2 21.3
    0.84    		 25
    1.00    		 4.57
    0.18    		 25
    1.00
    3/4 26.7
    1.05    		 25
    1.00    		 3.81
    0.15    		 25
    1.00
    1 33.4
    1.32    		 38
    1.50    		 4.57
    0.18    		 38
    1.50
    1-1/4 42.2
    1.66    		 38
    1.50    		 4.83
    0.19    		 38
    1.50
    1-1/2 48.3
    1.90    		 38
    1.50    		 5.08
    0.20    		 38
    1.50
    2 60.3
    2.38    		 38
    1.50    		 5.59
    0.22    		 44
    1.75
    2-1/2 73.0
    2.88    		 38
    1.50    		 7.00
    0.28    		 51
    2.00
    3 88.9
    3.50    		 51
    2.00    		 7.62
    0.30    		 64
    2.50
    3-1/2 101.6
    4.00    		 64
    2.50    		 8.13
    0.32    		 76
    3.00
    4 114.3
    4.50    		 64
    2.50    		 8.64
    0.34    		 76
    3.00
    5 141.3
    5.56    		 76
    3.00    		 9.65
    0.38    		 89
    3.50
    6 168.3
    6.62    		 89
    3.50    		 10.92
    0.43    		 102
    4.00
    8 219.1
    8.62    		 102
    4.00    		 12.70
    0.50    		 127
    5.00
    10 273.0
    10.75    		 127
    5.00    		 12.70
    0.50    		 152
    6.00
    12 323.8
    12.75    		 152
    6.00    		 12.70
    0.50    		 178
    7.00
    14 355.6
    14.00    		 165
    6.00    		 12.70
    0.50    		 191
    7.50
    16 406.4
    16.00    		 178
    7.00    		 12.70
    0.50    		 203
    8.00
    18 457.0
    18.00    		 203
    8.00    		 12.70
    0.50    		 229
    9.00
    20 508.0
    20.00    		 229
    9.00    		 12.70
    0.50    		 254
    10.00
    22 559.0
    22.00    		 254
    10.00    		 12.70
    0.50    		 254
    10.00
    24 610.0
    24.00    		 267
    10.50    		 12.70
    0.50    		 305
    12.00
    26 660.0
    26.00    		 267
    10.50    		 … …
    28 711.0
    28.00    		 267
    10.50    		 … …
    30 762.0
    30.00    		 267
    10.50    		 … …
    32 813.0
    32.00    		 267
    10.50    		 … …
    34 864.0
    34.00    		 267
    10.50    		 … …
    36 914.0
    36.00    		 267
    10.50    		 … …
    38 965.0
    38.00    		 305
    12.00    		 … …
    40 1016.0
    40.00    		 305
    12.00    		 … …
    42 1067.0
    42.00    		 305
    12.00    		 … …
    44 1118.0
    44.00    		 343
    13.50    		 … …
    46 1168.0
    46.00    		 343
    13.50    		 … …
    48 1219.0
    48.00    		 343
    13.50    		 … …

    *NPS: Nominal Pipe Size; O.D: Outside Diameter at Bevel; E: Length[NOTE(1)]; E1: Limiting Wall Thickness for Length; E: Length[NOTE(2)].

    *NOTES:
    (1) Length E applies for thickness not exceeding that given in column “Limiting Wall Thickness for Length, E.”
    (2) Length E applies for thickness greater than that given in column “Limiting Wall Thickness for Length, E” for NPS 24 and smaller. For NPS 26 and larger, length E shall be by agreement between the manufacturer and purchaser.

    Package

    • Payment & Shipping Terms:

      • Minimum Order Quantity: 1TONS
      • Packaging Details: PLYWOOD CASES AND PALLETS
      • Payment Terms: L/C, D/P, T/T
      • Delivery Time: 10-45DAYS
      • Supply Ability: 5000TONS/MONTH

    • Product Details:

      • Place of Origin: CHINA
      • Brand Name: XINFENG
      • Certification: ISO, CE
      • Standard: ANSI B16.9、 ANSI B16.28、 DIN2605/ 2615/ 2616/ 2617、 JIS B2311、 GOST 17375/ 17376/ 17377/ 17378.
      • Type: 45D/90D/180D ELBOW LR/SR, EQUAL TEE, REDUCING TEE,CONCENTRIC REDUCER, ECCENTRIC REDUCER, CAP, CROSS, SADDLE.
      • Size: 1/2" - 48"
      • Wall Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
      • Connect Type: Butt Welded
      • Surface Treatment: Black paint, light oil, hot dip Galvanized.
      • Material: Carbon steel: ASTM A234 WPB / 20#/ P265GH/ST37.2; Stainless steel: 304/304L, 316/316L
