Reudcer (con. /ecc.)

specializes in the manufacture of flanges, butt weld pipe fittings in standard as well as special parts and forgings according to customer drawings.

  • Commodity name： Reudcer (con. /ecc.)

Category:

Pipe Fitting

Email:

info@hbohgd.com

Get Quote
Also Like
  • Description
  • 参数

  • Technical Drawings

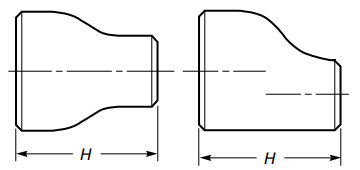

    Standard drawing of Reducer.

    The reducers are often used when the piping designers want to reduce the diameter of a straight run of pipe. There are two styles of standard reducers available in: Concentric – having a common centerline; Eccentric reducer – having offset centerlines.

    Dimensions

    NPS O.D L
    mm
    inch     		O.D S
    mm
    inch     		H
    mm
    inch
    3/4 x 1/2 26.7
    1.05    		 21.3
    0.84    		 38
    1.50
    3/4 x 3/8 26.7
    1.05    		 17.3
    0.68    		 38
    1.50
    1 x 3/4 33.4
    1.32    		 26.7
    1.05    		 51
    2.00
    1 x 1/2 33.4
    1.32    		 21.3
    0.84    		 51
    2.00
    1-1/4 x 1 42.2
    1.66    		 33.4
    1.32    		 51
    2.00
    1-1/4 x 3/4 42.2
    1.66    		 26.7
    1.05    		 51
    2.00
    1-1/4 x 1/2 42.2
    1.66    		 21.3
    0.84    		 51
    2.00
    1-1/2 x 1-1/4 48.3
    1.90    		 42.2
    1.66    		 64
    2.50
    1-1/2 x 1 48.3
    1.90    		 33.4
    1.32    		 64
    2.50
    1-1/2 x 3/4 48.3
    1.90    		 26.7
    1.05    		 64
    2.50
    1-1/2 x 1/2 48.3
    1.90    		 21.3
    0.84    		 64
    2.50
    2 x 1-1/2 60.3
    2.38    		 48.3
    1.90    		 76
    3.00
    2 x 1-1/4 60.3
    2.38    		 42.2
    1.66    		 76
    3.00
    2 x 1 60.3
    2.38    		 33.4
    1.32    		 76
    3.00
    2 x 3/4 60.3
    2.38    		 26.7
    1.05    		 76
    3.00
    2-1/2 x 2 73.0
    2.88    		 60.3
    2.38    		 89
    3.50
    2-1/2 x 1-1/2 73.0
    2.88    		 48.3
    1.90    		 89
    3.50
    2-1/2 x 1-1/4 73.0
    2.88    		 42.2
    1.66    		 89
    3.50
    2-1/2 x 1 73.0
    2.88    		 33.4
    1.32    		 89
    3.50
    3 x 2-1/2 88.9
    3.50    		 73.0
    2.88    		 89
    3.50
    3 x 2 88.9
    3.50    		 60.3
    2.38    		 89
    3.50
    3 x 1-1/2 88.9
    3.50    		 48.3
    1.90    		 89
    3.50
    3 x 1-1/4 88.9
    3.50    		 42.2
    1.66    		 89
    3.50
    3-1/2 x 3 101.6
    4.00    		 88.9
    3.50    		 102
    4.00
    3-1/2 x 2-1/2 101.6
    4.00    		 73.0
    2.88    		 102
    4.00
    3-1/2 x 2 101.6
    4.00    		 60.3
    2.38    		 102
    4.00
    3-1/2 x 1-1/2 101.6
    4.00    		 48.3
    1.90    		 102
    4.00
    3-1/2 x 1-1/4 101.6
    4.00    		 42.2
    1.66    		 102
    4.00
    4 x 3-1/2 114.3
    4.50    		 101.6
    4.00    		 102
    4.00
    4 x 3 114.3
    4.50    		 88.9
    3.50    		 102
    4.00
    4 x 2-1/2 114.3
    4.50    		 73.0
    2.88    		 102
    4.00
    4 x 2 114.3
    4.50    		 60.3
    2.38    		 102
    4.00
    4 x 1-1/2 114.3
    4.50    		 48.3
    1.90    		 102
    4.00
    5 x 4 141.3
    5.56    		 114.3
    4.50    		 127
    5.00
    5 x 3-1/2 141.3
    5.56    		 101.6
    4.00    		 127
    5.00
    5 x 3 141.3
    5.56    		 88.9
    3.50    		 127
    5.00
    5 x 2-1/2 141.3
    5.56    		 73.0
    2.88    		 127
    5.00
    5 x 2 141.3
    5.56    		 60.3
    2.38    		 127
    5.00
    6 x 5 168.3
    6.62    		 141.3
    5.56    		 140
    5.50
    6 x 4 168.3
    6.62    		 114.3
    4.50    		 140
    5.50

    *NPS: Nominal Pipe Size; O.D L: Outside Diameter at Bevel, large end; O.D S: Outside Diameter at Bevel, small end; H: Center-to-End.

    Package

    • Payment & Shipping Terms:

      • Minimum Order Quantity: 1TONS
      • Packaging Details: PLYWOOD CASES AND PALLETS
      • Payment Terms: L/C, D/P, T/T
      • Delivery Time: 10-45DAYS
      • Supply Ability: 5000TONS/MONTH

    • Product Details:

      • Place of Origin: CHINA
      • Brand Name: XINFENG
      • Certification: ISO, CE
      • Standard: ANSI B16.9、 ANSI B16.28、 DIN2605/ 2615/ 2616/ 2617、 JIS B2311、 GOST 17375/ 17376/ 17377/ 17378.
      • Type: 45D/90D/180D ELBOW LR/SR, EQUAL TEE, REDUCING TEE,CONCENTRIC REDUCER, ECCENTRIC REDUCER, CAP, CROSS, SADDLE.
      • Size: 1/2" - 48"
      • Wall Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
      • Connect Type: Butt Welded
      • Surface Treatment: Black paint, light oil, hot dip Galvanized.
      • Material: Carbon steel: ASTM A234 WPB / 20#/ P265GH/ST37.2; Stainless steel: 304/304L, 316/316L
