Tee & Cross (equal / reducing)

specializes in the manufacture of flanges, butt weld pipe fittings in standard as well as special parts and forgings according to customer drawings.

  • Commodity name： Tee & Cross (equal / reducing)

Category:

Pipe Fitting

Email:

info@hbohgd.com

Get Quote
Also Like
  • Description
  • 参数

  • Technical Drawings

    Standard drawing of Straight Tee & Cross.

    The straight tee is a three-way fitting used to make perpendicular connections to a pipe. Its name comes from its resemblance to the letter T. The straight cross is a four-way fitting used to make double perpendicular connections to the pipe. It resembles a crossroad. Lines that connect to the main run of pipe are knownn as “branches”. The main run of pipe is often called the “header”. The word “straight” denotes that all three(for tee) or four(for cross) outlets are the same pipe size.

    Dimensions

    NPS O.D
    mm
    inch    		 C
    mm
    inch    		 M
    mm
    inch
    1/2 21.3
    0.84    		 25
    1.00    		 25
    1.00
    3/4 26.7
    1.05    		 29
    1.12    		 29
    1.12
    1 33.4
    1.32    		 38
    1.50    		 38
    1.50
    1-1/4 42.2
    1.66    		 48
    1.88    		 48
    1.88
    1-1/2 48.3
    1.90    		 57
    2.25    		 57
    2.25
    2 60.3
    2.38    		 64
    2.50    		 64
    2.50
    2-1/2 73.0
    2.88    		 76
    3.00    		 76
    3.00
    3 88.9
    3.50    		 86
    3.38    		 86
    3.38
    3-1/2 101.6
    4.00    		 95
    3.75    		 95
    3.75
    4 114.3
    4.50    		 105
    4.12    		 105
    4.12
    5 141.3
    5.56    		 124
    4.88    		 124
    4.88
    6 168.3
    6.62    		 143
    5.62    		 143
    5.62
    8 219.1
    8.62    		 178
    7.00    		 178
    7.00
    10 273.0
    10.75    		 216
    8.50    		 216
    8.50
    12 323.8
    12.75    		 254
    10.00    		 254
    10.00
    14 355.6
    14.00    		 279
    11.00    		 279
    11.00
    16 406.4
    16.00    		 305
    12.00    		 305
    12.00
    18 457.0
    18.00    		 343
    13.50    		 343
    13.50
    20 508.0
    20.00    		 381
    15.00    		 381
    15.00
    22 559.0
    22.00    		 419
    16.50    		 419
    16.50
    24 610.0
    24.00    		 432
    17.00    		 432
    17.00
    26 660.0
    26.00    		 495
    19.50    		 495
    19.50
    28 711.0
    28.00    		 521
    20.50    		 521
    20.50
    30 762.0
    30.00    		 559
    22.00    		 559
    22.00
    32 813.0
    32.00    		 597
    23.50    		 597
    23.50
    34 864.0
    34.00    		 635
    25.00    		 635
    25.00
    36 914.0
    36.00    		 673
    26.50    		 673
    26.50
    38 965.0
    38.00    		 711
    28.00    		 711
    28.00
    40 1016.0
    40.00    		 749
    29.50    		 749
    29.50
    42 1067.0
    42.00    		 762
    30.00    		 711
    28.00
    44 1118.0
    44.00    		 813
    32.00    		 762
    30.00
    46 1168.0
    46.00    		 851
    33.50    		 800
    31.50
    48 1219.0
    48.00    		 889
    35.00    		 838
    33.00

    *NPS: Nominal Pipe Size; O.D: Outside Diameter at Bevel; C: Center-to-End, Run; M: Center-to-End, Outlet.

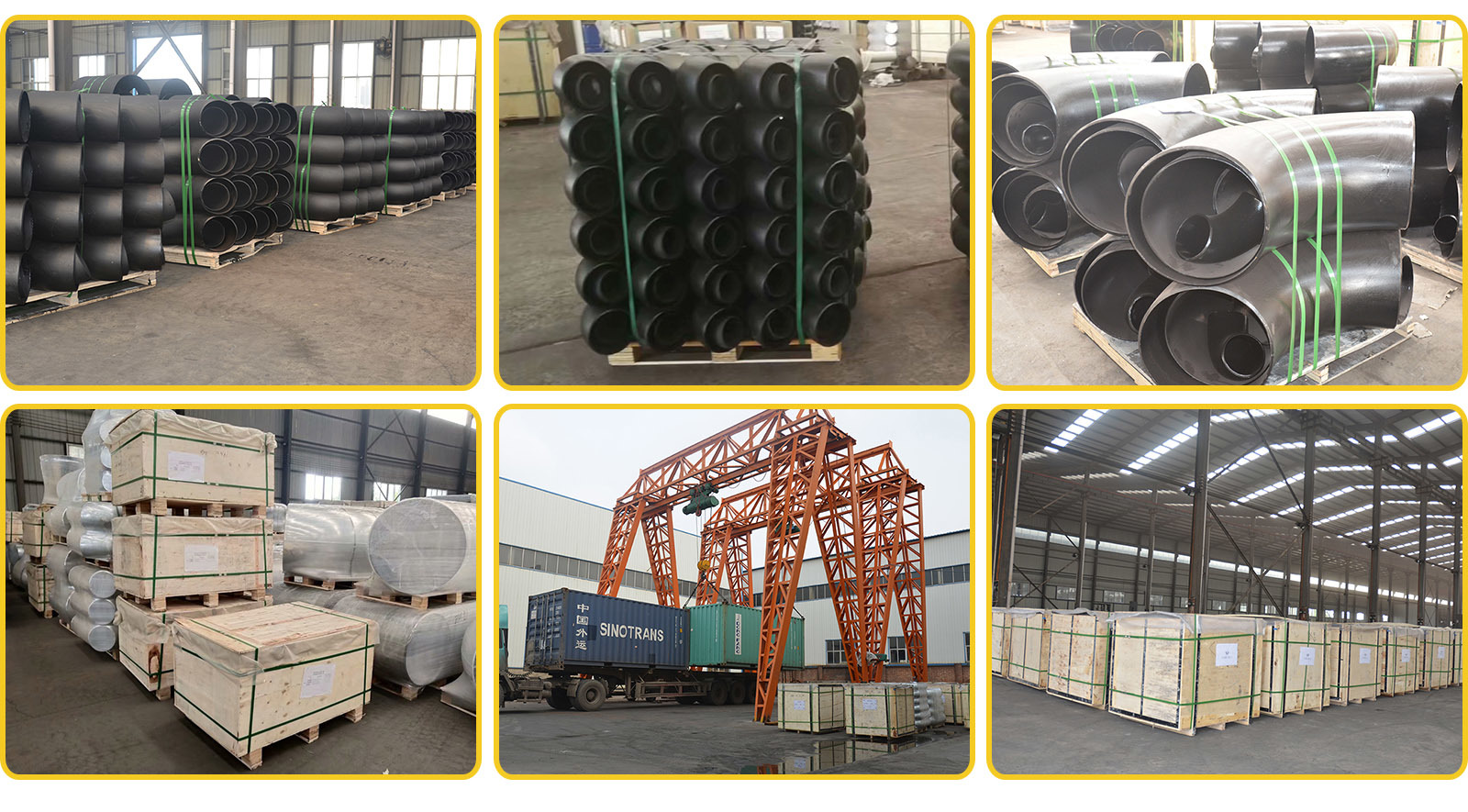

    Package

    • Payment & Shipping Terms:

      • Minimum Order Quantity: 1TONS
      • Packaging Details: PLYWOOD CASES AND PALLETS
      • Payment Terms: L/C, D/P, T/T
      • Delivery Time: 10-45DAYS
      • Supply Ability: 5000TONS/MONTH

    • Product Details:

      • Place of Origin: CHINA
      • Brand Name: XINFENG
      • Certification: ISO, CE
      • Standard: ANSI B16.9、 ANSI B16.28、 DIN2605/ 2615/ 2616/ 2617、 JIS B2311、 GOST 17375/ 17376/ 17377/ 17378.
      • Type: 45D/90D/180D ELBOW LR/SR, EQUAL TEE, REDUCING TEE,CONCENTRIC REDUCER, ECCENTRIC REDUCER, CAP, CROSS, SADDLE.
      • Size: 1/2" - 48"
      • Wall Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
      • Connect Type: Butt Welded
      • Surface Treatment: Black paint, light oil, hot dip Galvanized.
      • Material: Carbon steel: ASTM A234 WPB / 20#/ P265GH/ST37.2; Stainless steel: 304/304L, 316/316L

Key words:

Pipe Fitting

Get A Quote

Note: Please leave your email address, our professionals will contact you as soon as possible!

Submit
