Elbow (LR / SR)

specializes in the manufacture of flanges, butt weld pipe fittings in standard as well as special parts and forgings according to customer drawings.

  • Commodity name： Elbow (LR / SR)

Category:

Pipe Fitting

Email:

info@hbohgd.com

Get Quote
Also Like
  • Description
  • 参数

  • Technical Drawings

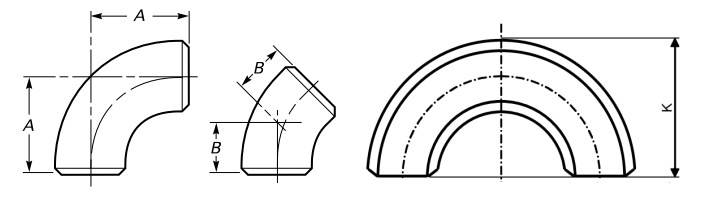

    Standard drawing of 90° & 45° long radius (L/R) elbows.

    The elbow is used when a pipe changes direction. Elbows can turn up, turn down, turn left, right, or any angle in between. The long radius (L/R) elbows denote elbows with the center-to-end dimension of 1.5D radius which equals to 1.5 x NPS in inch unit. The standard long radius elbows can be further classified as 90° and 45° according to the angle of the flow-direction change.

    Dimensions

    NPS O.D
    mm
    inch    		 A
    mm
    inch    		 B
    mm
    inch
    1/2 21.3
    0.84    		 38
    1.50    		 16
    0.62
    3/4 26.7
    1.05    		 38
    1.50    		 19
    0.75
    1 33.4
    1.32    		 38
    1.50    		 22
    0.88
    1-1/4 42.2
    1.66    		 48
    1.88    		 25
    1.00
    1-1/2 48.3
    1.90    		 57
    2.25    		 29
    1.12
    2 60.3
    2.38    		 76
    3.00    		 35
    1.38
    2-1/2 73.0
    2.88    		 95
    3.75    		 44
    1.75
    3 88.9
    3.50    		 114
    4.50    		 51
    2.00
    3-1/2 101.6
    4.00    		 133
    5.25    		 57
    2.25
    4 114.3
    4.50    		 152
    6.00    		 64
    2.50
    5 141.3
    5.56    		 190
    7.50    		 79
    3.12
    6 168.3
    6.62    		 229
    9.00    		 95
    3.75
    8 219.1
    8.62    		 305
    12.00    		 127
    5.00
    10 273.0
    10.75    		 381
    15.00    		 159
    6.25
    12 323.8
    12.75    		 457
    18.00    		 190
    7.50
    14 355.6
    14.00    		 533
    21.00    		 222
    8.75
    16 406.4
    16.00    		 610
    24.00    		 254
    10.00
    18 457.0
    18.00    		 686
    27.00    		 286
    11.25
    20 508.0
    20.00    		 762
    30.00    		 318
    12.50
    22 559.0
    22.00    		 838
    33.00    		 343
    13.50
    24 610.0
    24.00    		 914
    36.00    		 381
    15.00
    26 660.0
    26.00    		 991
    39.00    		 406
    16.00
    28 711.0
    28.00    		 1067
    42.00    		 438
    17.25
    30 762.0
    30.00    		 1143
    45.00    		 470
    18.50
    32 813.0
    32.00    		 1219
    48.00    		 502
    19.75
    34 864.0
    34.00    		 1295
    51.00    		 533
    21.00
    36 914.0
    36.00    		 1372
    54.00    		 565
    22.25
    38 965.0
    38.00    		 1448
    57.00    		 600
    23.62
    40 1016.0
    40.00    		 1524
    60.00    		 632
    24.88
    42 1067.0
    42.00    		 1600
    63.00    		 660
    26.00
    44 1118.0
    44.00    		 1676
    66.00    		 695
    27.38
    46 1168.0
    46.00    		 1753
    69.00    		 727
    28.62
    48 1219.0
    48.00    		 1829
    72.00    		 759
    29.88

    *NPS: Nominal Pipe Size; O.D: Outside Diameter at Bevel; A: Center-to- End, 90-deg Elbows; B: Center-to- End, 45-deg Elbows.

    Package

    • Payment & Shipping Terms:

      • Minimum Order Quantity: 1TONS
      • Packaging Details: PLYWOOD CASES AND PALLETS
      • Payment Terms: L/C, D/P, T/T
      • Delivery Time: 10-45DAYS
      • Supply Ability: 5000TONS/MONTH

    • Product Details:

      • Place of Origin: CHINA
      • Brand Name: XINFENG
      • Certification: ISO, CE
      • Standard: ANSI B16.9、 ANSI B16.28、 DIN2605/ 2615/ 2616/ 2617、 JIS B2311、 GOST 17375/ 17376/ 17377/ 17378.
      • Type: 45D/90D/180D ELBOW LR/SR, EQUAL TEE, REDUCING TEE,CONCENTRIC REDUCER, ECCENTRIC REDUCER, CAP, CROSS, SADDLE.
      • Size: 1/2" - 48"
      • Wall Thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS, JIS, DIN
      • Connect Type: Butt Welded
      • Surface Treatment: Black paint, light oil, hot dip Galvanized.
      • Material: Carbon steel: ASTM A234 WPB / 20#/ P265GH/ST37.2; Stainless steel: 304/304L, 316/316L
